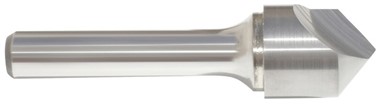

5/8x3/8 100° SGL FL CARB CNSK

Part Number: 75182

UPC: 888226751827

MTC Carbide is sold through distributors all over the country.

Please login or register for an account to view pricing or purchase products.

Designed for general purpose countersinking, chamfering and deburring in most ferrous and non-ferrous materials. Larger sizes are solid carbide heads, induction brazed onto hardened steel shanks to ensure a solid and safe-secure bond.

Product Dimensions: 0.45" H x 0.45" W x 3.35" L

Applications:

Materials:

Speeds & Feeds:

For recommended speeds & feeds
for this product click here

Availability:

Usually ships SAME DAY
if ordered before 6pm Eastern

Shipping:

Via UPS
Weight: 0.16lbs

Brand: MTC

Flutes: 1

Diameter: 5/8"

Diameter (Decimal Inch): 0.6250 in.

Diameter (Metric): 15.88mm

Shank Diameter: 3/8

Shank (Decimal Inch): 0.3750 in.

Overall Length: 2-3/4"

Overall Length (Decimal Inch): 2.7500 in.

Single/Double End: Single End

End Style: 100° Included Angle

Included Angle: 100°

Material: Tungsten Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

Centerline Angle: 50

Countersink Application: Countersinking

Countersink Head Only: No
