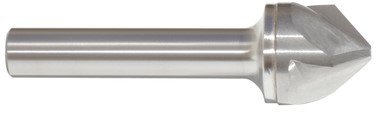

1/2x1/4 82° 3FL CARB CNSK

Part Number: 67651

UPC: 888226676519

MTC Carbide is sold through distributors all over the country.

Please login or register for an account to view pricing or purchase products.

Designed for general purpose countersinking, chamfering and deburring in most ferrous and non-ferrous materials. Larger sizes are solid carbide heads, induction brazed onto hardened steel shanks to ensure a solid and safe-secure bond.

Product Dimensions: 0.67" H x 0.67" W x 3.35" L

Applications:

Materials:

Speeds & Feeds:

For recommended speeds & feeds
for this product click here

Availability:

Usually ships SAME DAY
if ordered before 6pm Eastern

Shipping:

Via UPS
Weight: 0.08lbs

Brand: MTC

Flutes: 3

Diameter: 1/2"

Diameter (Decimal Inch): 0.5000 in.

Diameter (Metric): 12.70mm

Shank Diameter: 1/4"

Shank (Decimal Inch): 0.2500 in.

Overall Length: 2-1/2"

Overall Length (Decimal Inch): 2.5000 in.

Includes Pilot: No

Single/Double End: Single End

Finish: Bright

End Style: 82° Included Angle

Included Angle: 82°

Flute Type: 0

Material: Tungsten Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

Centerline Angle: 41

Countersink Application: Countersinking

Countersink Head Only: No

NOTE: Included in the following set: 333-100082
